Ribbon Slitting Machine

◆ Specification:Hot Blade/ Single groove
◆ Material:Nylon/ Chiffon/ Tetoron/ fiber...etc
(For the fabric which edge will come loose or scattered)
◆ Dimension:L2700xW2800xH1600mm
◆ Working Width:1650mm (65”)
◆ Min. slitting width:10mm / Customized
◆ Maximum material diameter:Customized
◆ Rewinder:Single/Double Shaft
◆ Machine power:220V / 380V / Customized
◆ Customized Design. Easy to operate
◆ Intellectual Production Management
◆ Feel free to contact us for any customized requirements!

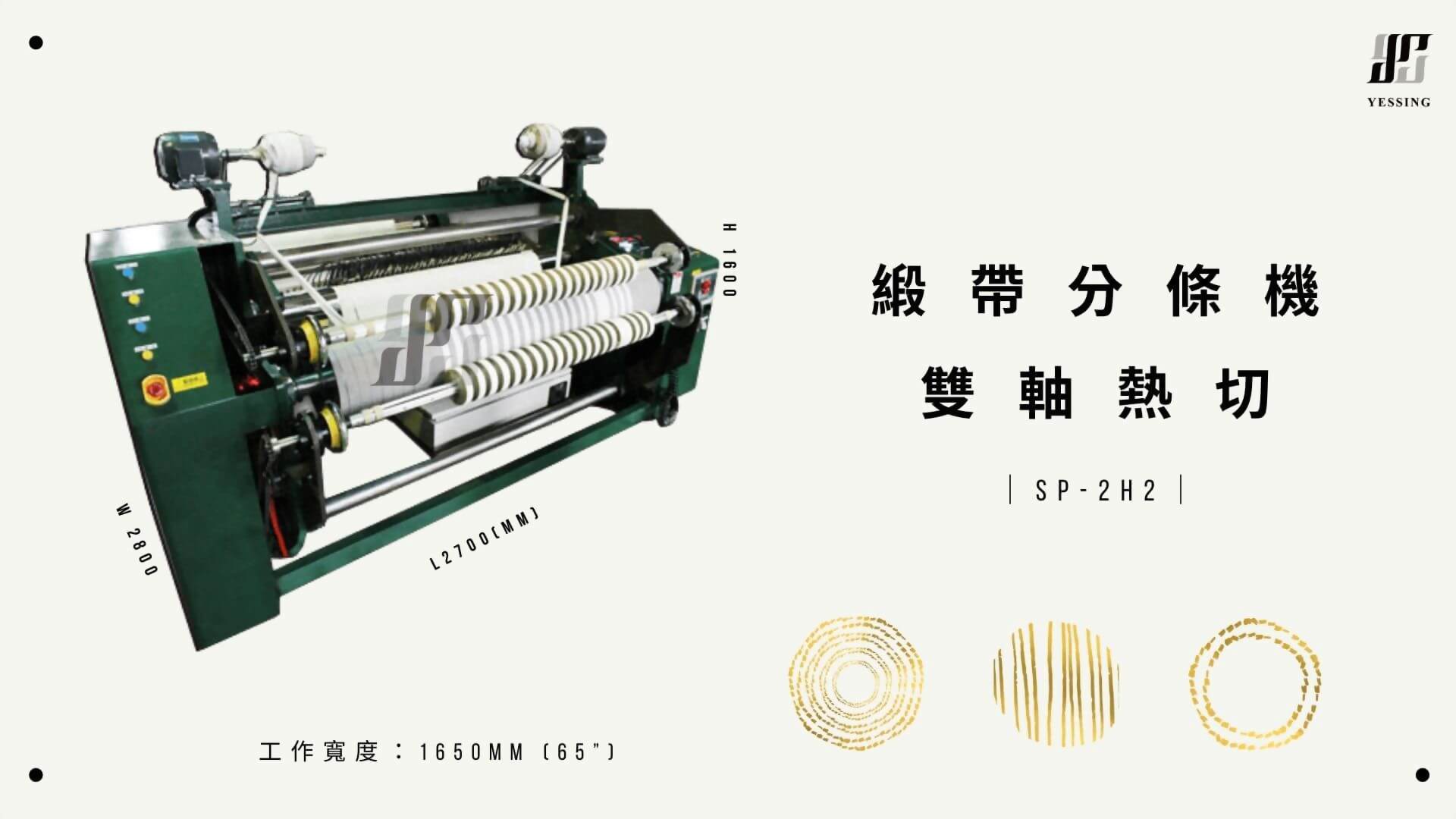

Model : SP-C






Machine Specification
SP-2H2
【Ribbon/Band Slitting Machine 】
Dimension Hot Blade/ Single groove
Working Width 1650mm (65”)

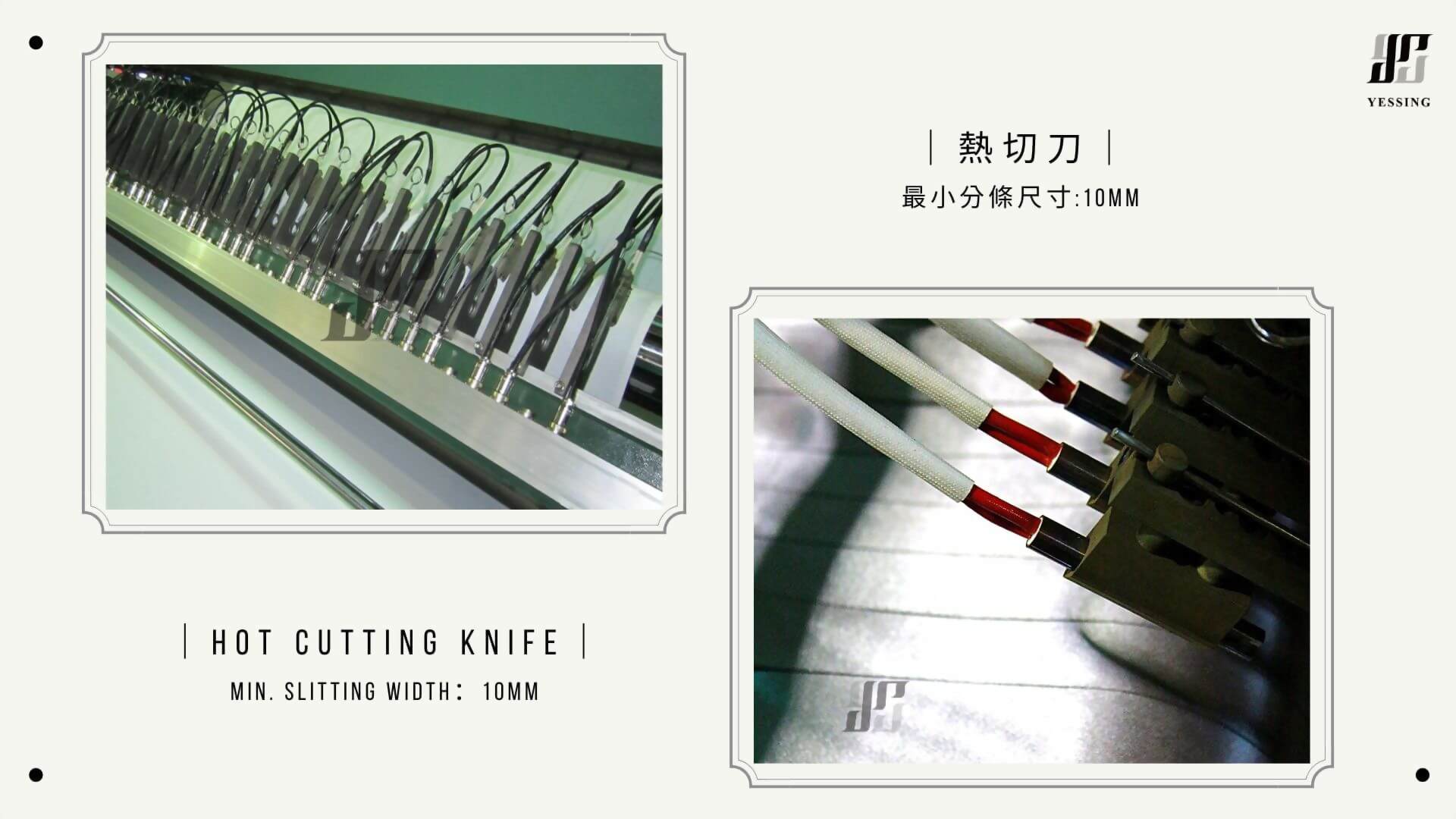

Cutting Device Hot Blade
 Min. slitting width 10mm
Rewinder Single Shaft
Edge Position Control V
Tension control V
Data Analysis Report  x
Troubleshooting Remote System x
Certification Standard Regulation
Operator 1 person
Feel free to contact us if you have any customized requirements!
yessing@yessing.com.tw
 +886-4-26265299

【Standard Device】
1. Unwinder
 - Unwinding device (Customized)
 - Aluminum guiding wheel
 - Magnetic particle clutch with Controller
 - Air shaft

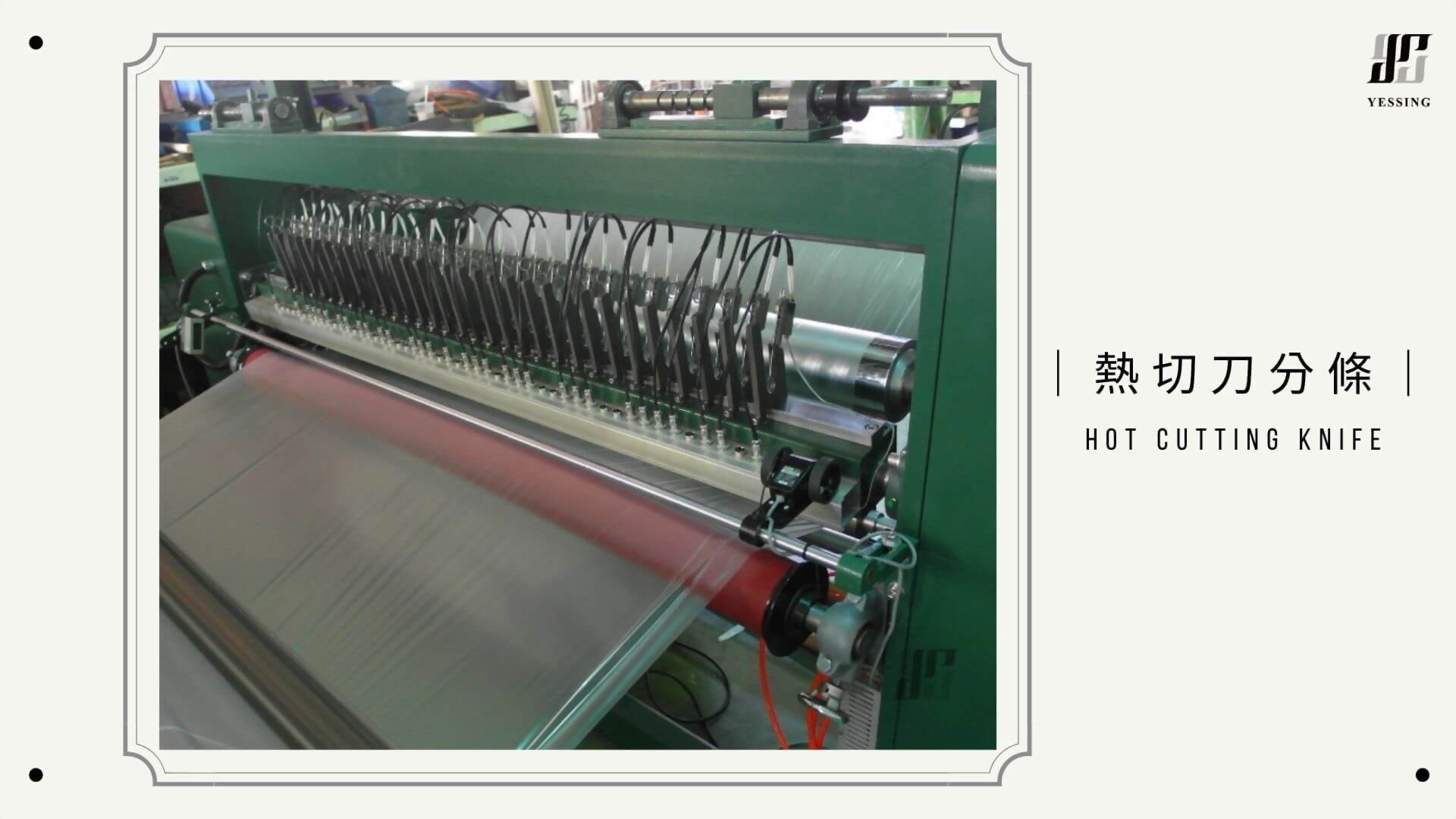

2. Cutting System
 - Aluminum guiding wheel
 - Cutting blade
 - Emergency wire switch

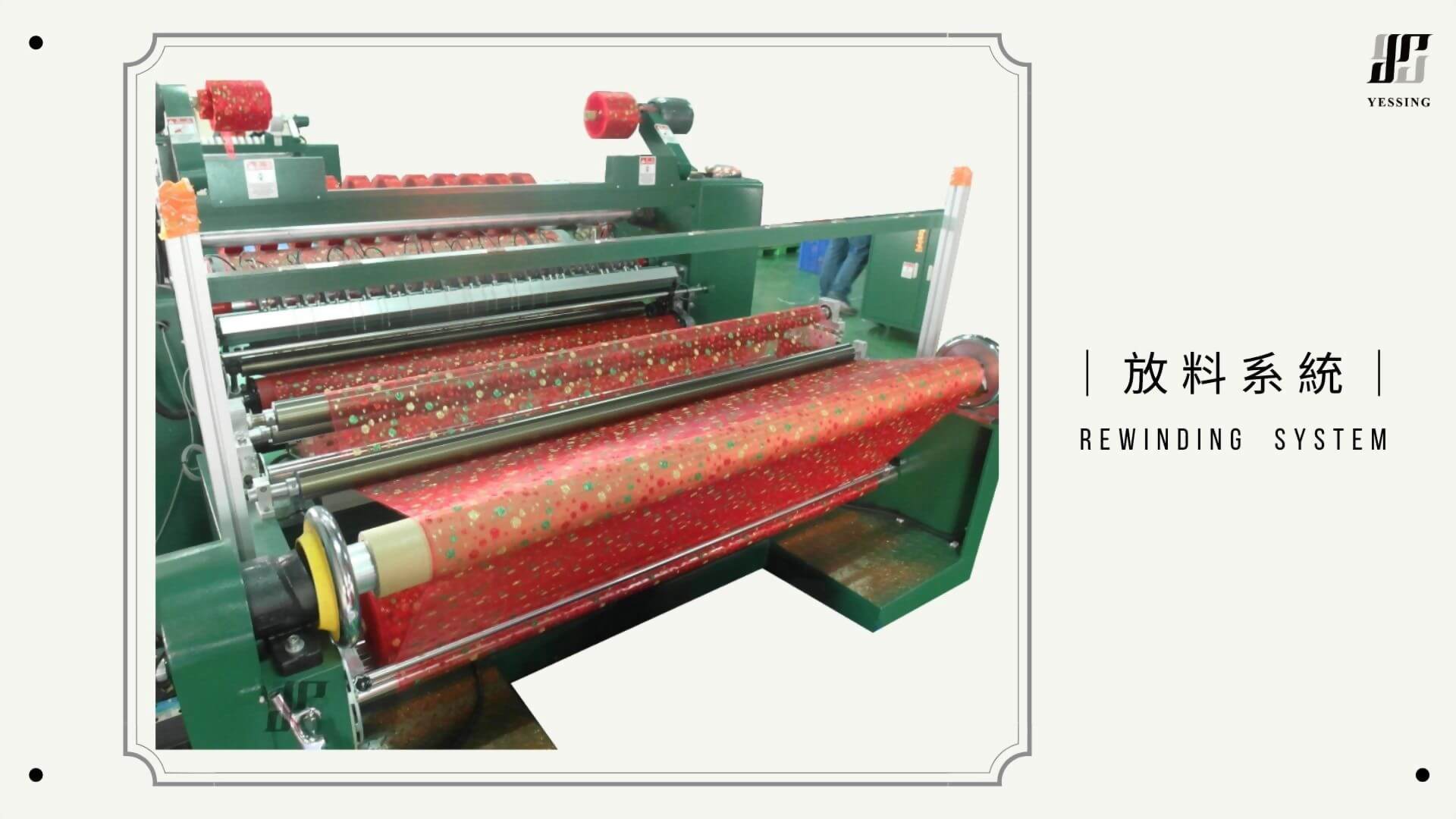

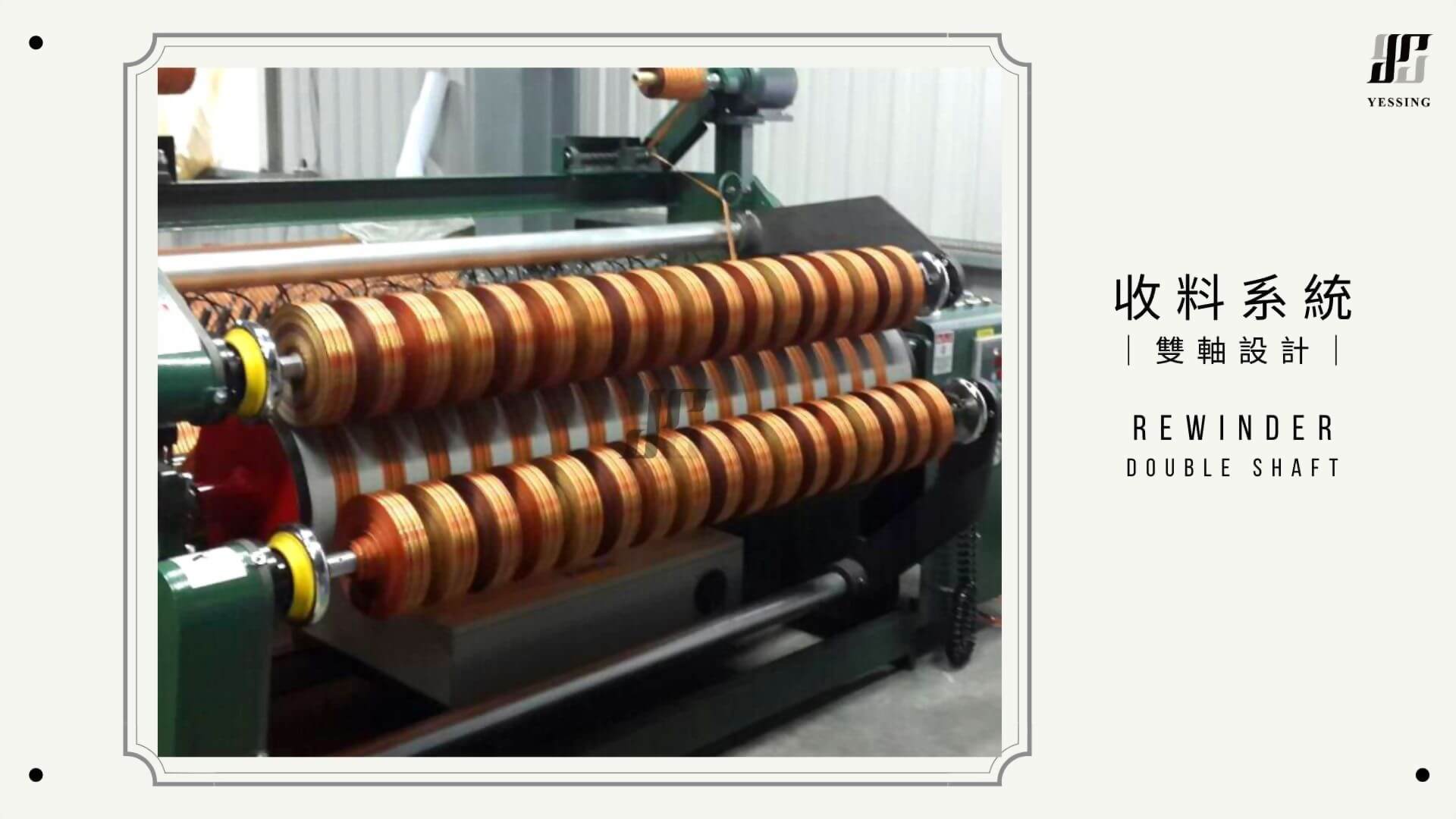

3. Rewinder
 - Rewinding device (Customized)
 - Safety chuck
 - Eletronical stop watch
 - Air shaft

4. Motor Device
 - Inverter motor
 - Frequency converter
 - Reducer

【Optional Device】
。Cutting knife
。Safety Design (Customized)
。Tension control
。Edge Position Control
。Data Analysis Report
。Troubleshooting Remote System
Application:Ribbon/ Curtain/ Bag/ Cummerbund/ Decoration/ Band...

Material:Nylon/ Chiffon/ Tetoron/ fiber...etc
(For the fabric which edge will come loose or scattered)

   Kindly Remind:
The design of the machine will be different according to different fabrics feature.
 You are welcome to contact us for any customized requirements!
   yessing@yessing.com.tw
 +886-4-26265299
