Yessing Machinery's Fabric Cutting Machine has be widely used in cutting PVC/ PE/ PET/ OPP/ Paper/Non-woven materials in different industries.
◆ Intellectual Production Management

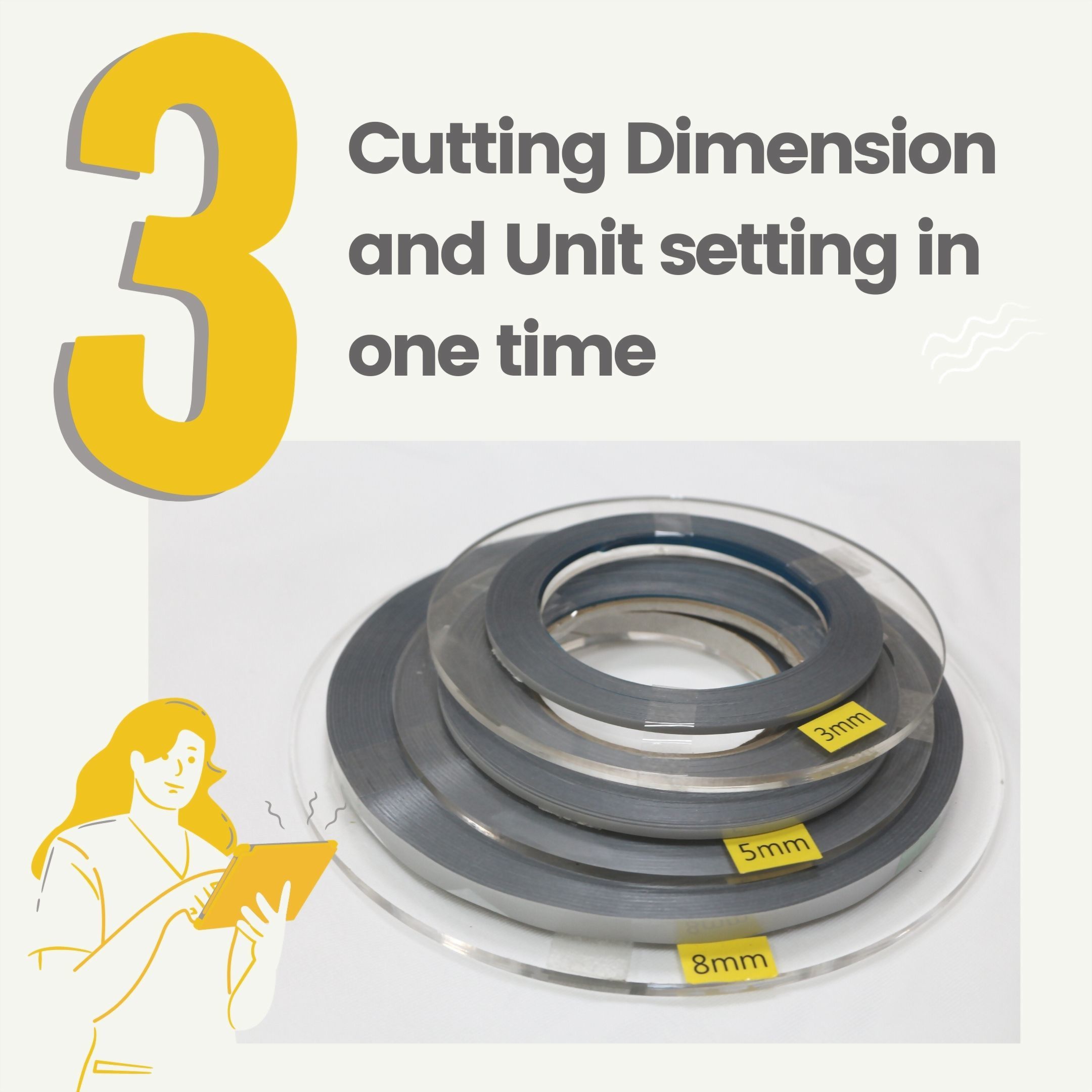

◆ 3 Cutting Dimension and Unit setting in one time

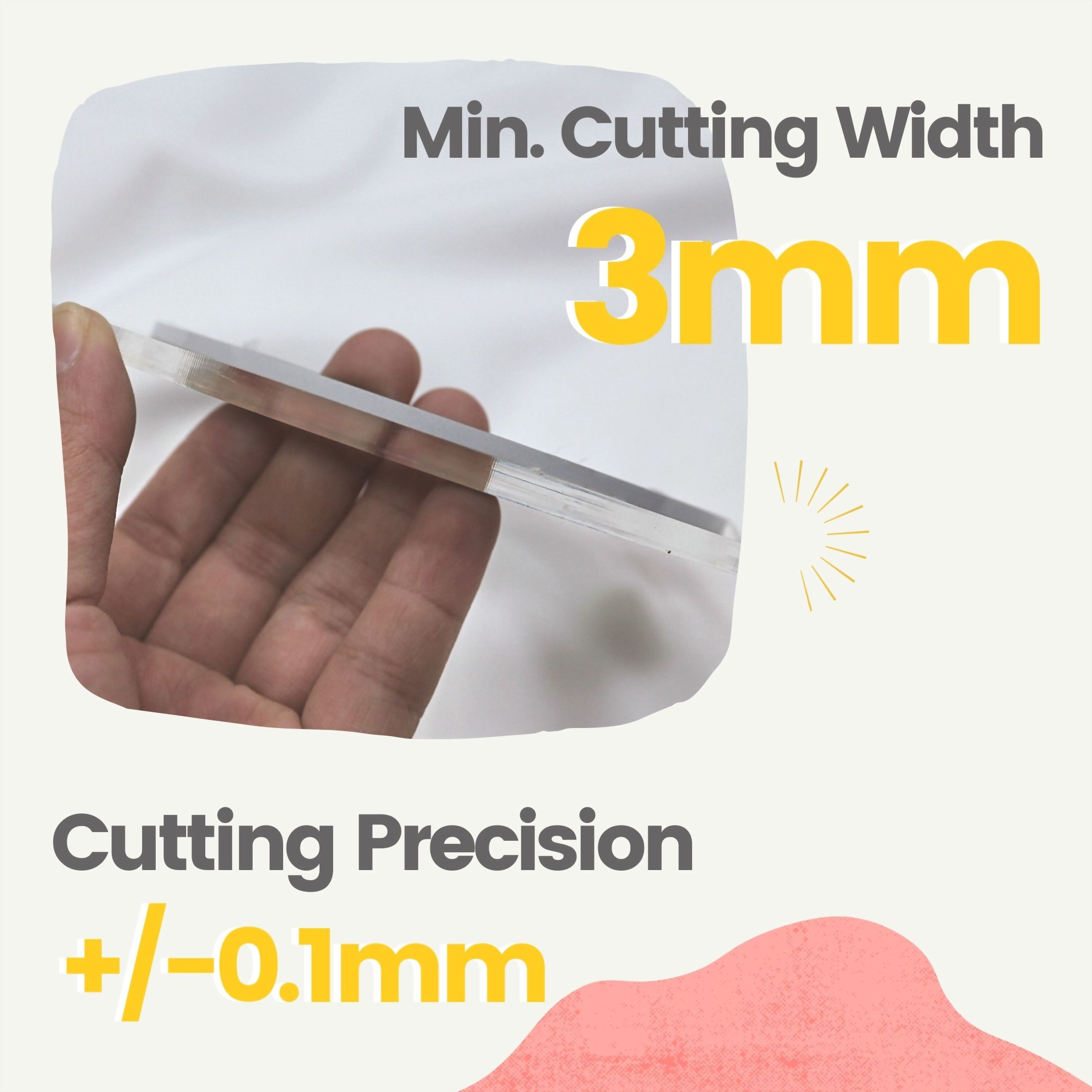

◆ Min. Cutting Width ：3mm
◆ Cutting Precision：+/-0.1mm
◆ Maximum Material Diameter：φ300mm / Customized
◆ Voltage：220V / 380V / Other
◆ Intellectual Production Management
◆ 3 Cutting Dimension and Unit setting in one time
◆ Min. Cutting Width ：3mm
◆ Cutting Precision：+/-0.1mm
◆ Maximum Material Diameter：φ300mm / Customized
◆ Voltage：220V / 380V / Other
Model :
CH7AS
| Machine Specification | |||
|
【Standard】
CH-7A
|
【High
Class】
CH-7AS
|
【High
Plus】
CH-7Aplus
|
|

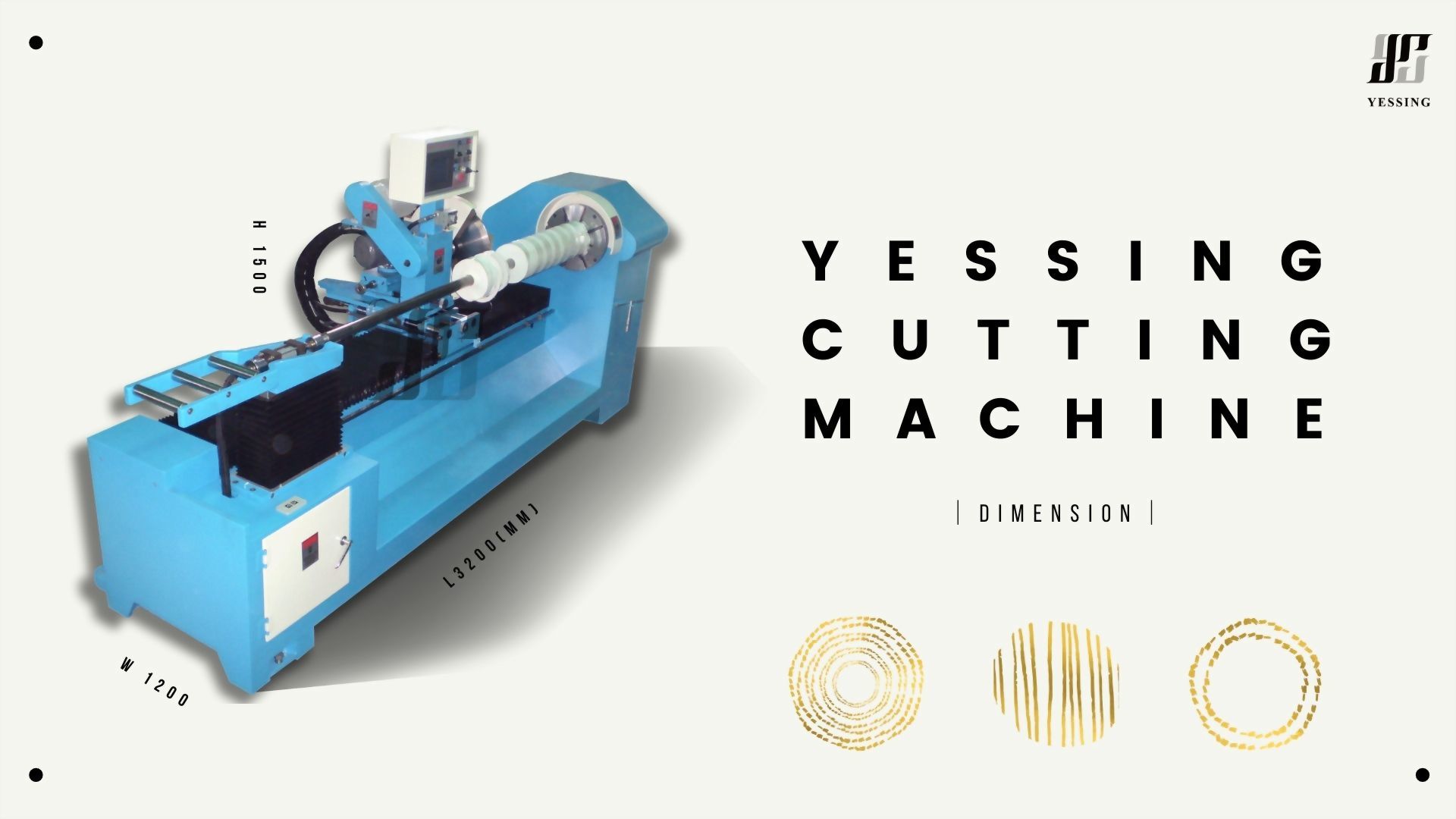

| Dimension | L3200xW1200xH1500mm | L3200xW1200xH1600mm | L3200xW1400xH1600mm |
| Working Width | 1800mm | 1800mm | 1800mm |

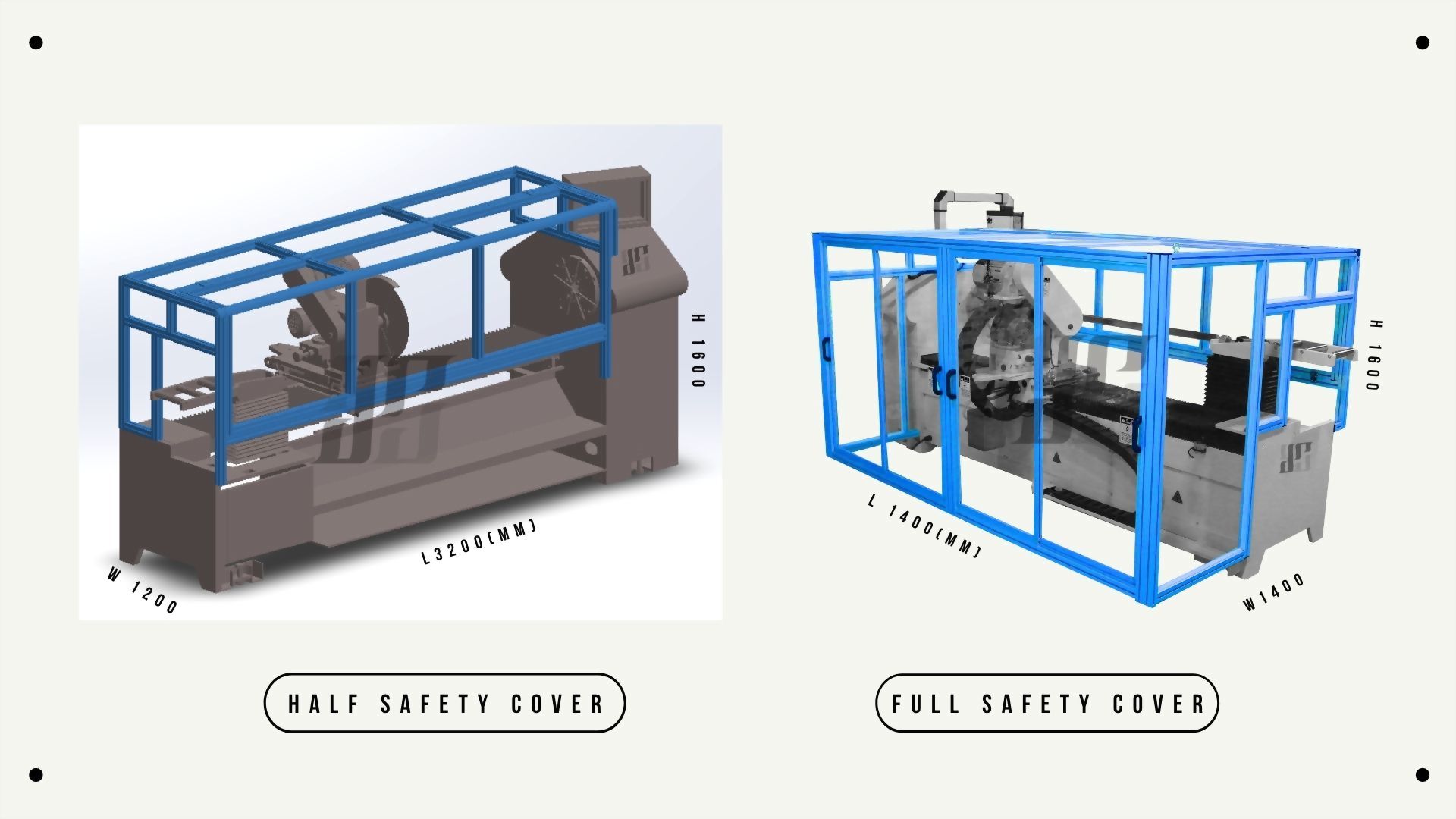

| Safety Cover | x | Half Cover | Full Cover |

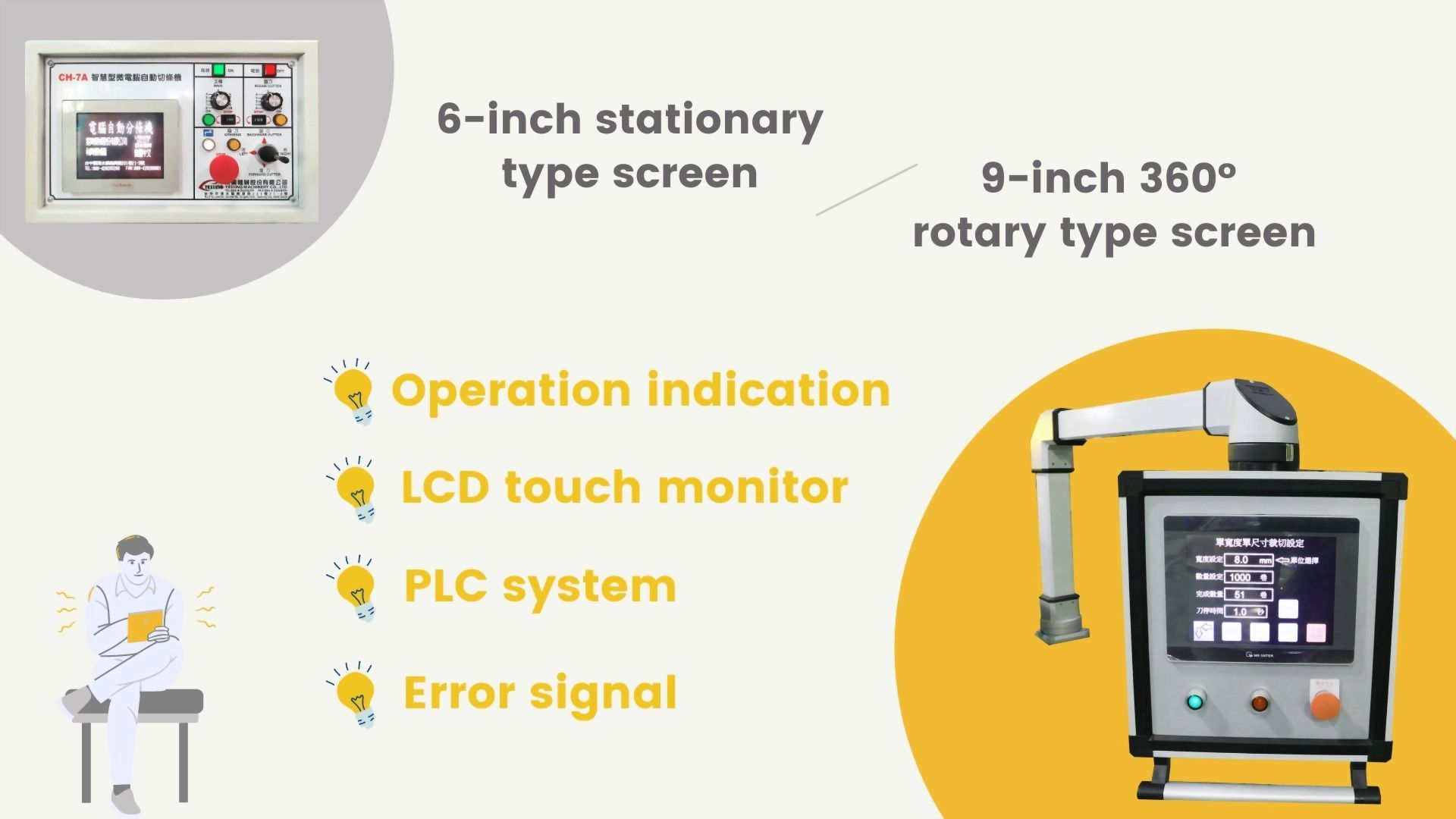

| PLC Screen | 5 inches | 5 inches | 9 inched，360°Rotary type |
| Clipping Device | Manual | Automatic | Automatic |
| Certification | Standard Regulation | Standard Regulation | CE Marking Regulation |
| Data Analysis Report | x | x | V |
| Troubleshooting Remote System | x | x | V |
| Operator | 1 person | 1 person | 1 person |
|
Feel
free to contact us if you have any customized requirements！ yessing@yessing.com.tw +886-4-26265299 |
|||
【Standard Device】
1. PLC Human-machine interface (9/5inches) *1Set
2. Material Clipping Device *1PCS
3. Automatic Blade Sharpening Device *1PCS
4. Sprayer for Water/Release agent *1Set
5. HSS Cutting Blade Made In Germany 400mm *1PCS
6. Unwinder Lifting Device *1Set
7. Specialized Toolbox *1Set
8. LED Tricolor Warning Light *1Set
9. Motor Device：1/4HP*1,1HP*1,2HP*1,2HP*1
10. 2 Sizes Unwinding Shaft：
(1)φ42mm Plating Shaft * 1Set
(2)φ75mm Aluminum Shaft+PE Plastic Tube * 1Set
【Optional Device】
。Chilling Machine- Blade Cooling System
。UL Regulation Design
1. PLC Human-machine interface (9/5inches) *1Set
2. Material Clipping Device *1PCS
3. Automatic Blade Sharpening Device *1PCS
4. Sprayer for Water/Release agent *1Set
5. HSS Cutting Blade Made In Germany 400mm *1PCS
6. Unwinder Lifting Device *1Set
7. Specialized Toolbox *1Set
8. LED Tricolor Warning Light *1Set
9. Motor Device：1/4HP*1,1HP*1,2HP*1,2HP*1
10. 2 Sizes Unwinding Shaft：
(1)φ42mm Plating Shaft * 1Set
(2)φ75mm Aluminum Shaft+PE Plastic Tube * 1Set
【Optional Device】
。Chilling Machine- Blade Cooling System
。UL Regulation Design
Product：Textile Garments/ Self-adhesive Tapes/ Sports Shoes/ Gloves/ Leather/ Bags/
Stationery/ Hats/ Mask Edges/ Swimwear/ Filters...etc
Stationery/ Hats/ Mask Edges/ Swimwear/ Filters...etc
Material：PVC/ PE/ PET/ OPP/ Kraft paper/copper foil/aluminum foil/paper towels/wiping paper/non-woven fabric/TC material/Tetoron cloth/foam/sponge/plastic leather/adhesive tape/reflective strip/fluorescent strip...etc
Kindly Remind
According to the feature of different fabrics, the design of the machine may be different too.
Feel free to contact us if you have any customized requirements！
